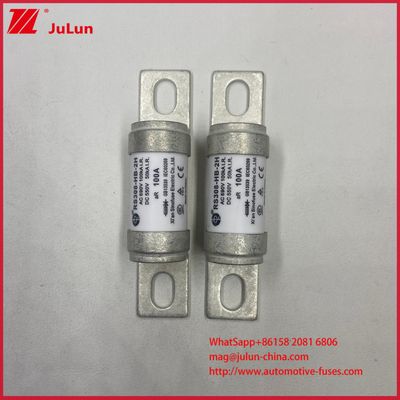

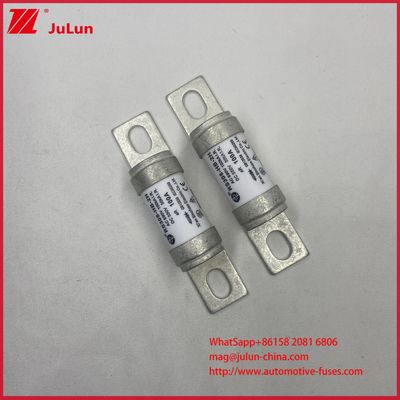

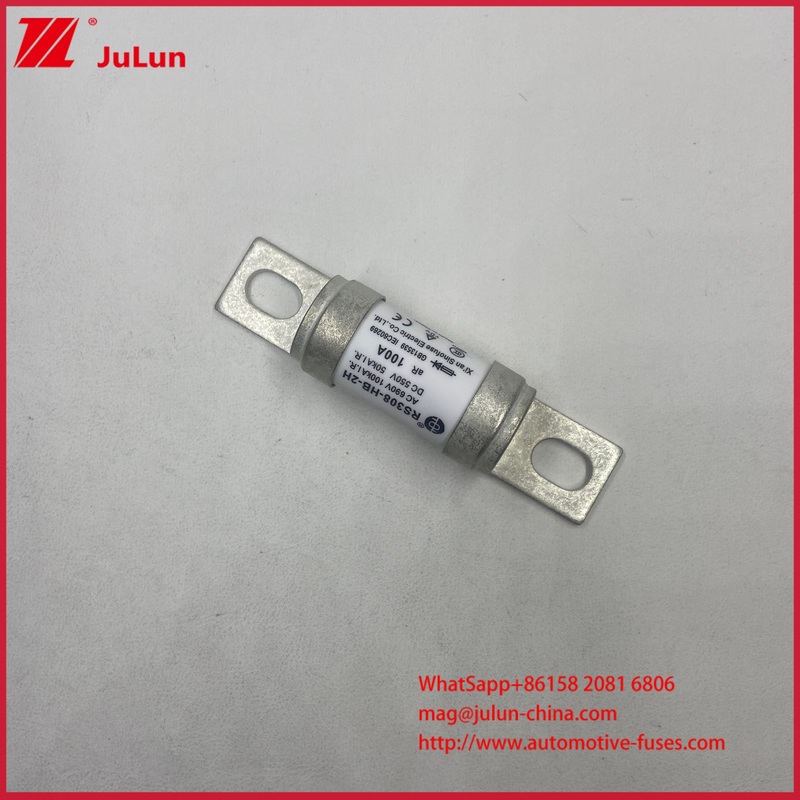

RS308-HB-2H 32-200A 550VDC 690VAC Durable Ceramic Automobile Fuses with M6 M8 Installation Bolt and GB/T31465 Certification
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | SINO FUSE |
| Certificação: | UL |
| Model Number: | RS308-HB-2H |
Condições de Pagamento e Envio:
| Minimum Order Quantity: | 10 |
|---|---|
| Preço: | 4~5USD |
| Packaging Details: | Carton |
| Delivery Time: | 2~3weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/PCS |
|
Informação detalhada |
|||
| Tensão nominal: | AC690V/DC550V | Capacidade de quebra: | AC100KA@COSφ0.2,DC50KA@L/ R≤10ms |
|---|---|---|---|
| Recurso: | Dimensões pequenas com corrente nominal elevada para protecção contra curto-circuito | Modo de instalação: | Torque restrito recomendado |
| Método de montagem: | parafuso parafuso | Corrente nominal: | 10A a 710A |
| O desempenho refere-se: | IEC60269 e a confiabilidade ambiental estão em conformidade com ISO8820, JASO D622 e GB/T31465 | Categoria de uso: | AR |
| Destacar: | ceramic automotive fuses with M6 bolt,32-200A ceramic car fuses,550VDC ceramic fuses GB/T31465 certified |
||
Descrição de produto
- Product Name: Ceramic Automotive Fuses
- Installation Bolt: M6, M8
- Mounting Method: Screw Bolt
- Rated Voltage: AC690V/DC550V
- Rated Current Range: 10A to 710A
- Application: EV Traction System, Power Conversion, Energy Storage, Car Charger, and more
- Ideal for use as Automotive Components
- High-quality Ceramic Car Fuses for enhanced durability and safety
| Application Product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
|---|---|
| Rated Current | 10A To 710A |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Installation Bolt | M6, M8 |
| Installation Mode | Recommended Tight Torque |
| Usage Category | AR |
| Mounting Method | SCREW BOLT |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Performance Reference | IEC60269, Environmental Reliability Complies With ISO8820, JASO D622, And GB/T31465 |
| Breaking Capacity | AC100KA@COSφ0.2, DC50KA@L/R≤10ms |
The Ceramic Automotive Fuses by SINO FUSE, model number RS308-HB-2H, are specifically designed to meet the demanding requirements of modern automotive and power systems. Manufactured in China with UL certification, these fuses offer reliable protection and exceptional performance, making them ideal for a variety of application occasions and scenarios.
With a breaking capacity of AC100KA@COSφ0.2 and DC50KA@L/R≤10ms, these Ceramic Car Fuses ensure safety and durability under high fault current conditions. One of the primary application occasions is within EV traction systems, where they provide excellent thermal stability and electrical conductivity to protect critical traction components.
These fuses are also widely used in power conversion systems, energy storage systems, and car chargers, offering fast and reliable interruption capabilities to safeguard sensitive components. Their secure screw bolt mounting method minimizes the risk of mechanical failure during operation.
SINO FUSE offers customized Ceramic Automotive Fuses, model number RS308-HB-2H, designed specifically for automotive components and power conversion systems. Certified by UL and compliant with IEC60269 standards, our fuses meet stringent environmental reliability requirements.
We provide flexible customization options with a minimum order quantity of 10 units, priced between 25 to 45 USD per piece. Packaging is done securely in cartons with a supply ability reaching up to 1000K pieces and a typical delivery time of 2 to 3 weeks.
